Reversible Corner #4

MODULE PAGES

Corner Modules
Main Street and Railroad Avenue
Scenic Corner
Reversible Corner #1
Reversible Corner #2
Reversible Corner #3
Reversible Corner #4
Steel Corner
Pottstown Yard Corner
Yard Modules
Pottstown Yard - East End
Pottstown Yard - East Classification Tracks
Pottstown Yard - West Classification Tracks
Pottstown Yard - West End and Engine House
Pottstown Yard Corner
Steel Modules
Scrap Yard
Changing Times
Coke Ovens
Coke By-Products
Module_BlastFurnaces
Foundry & Forge
Basic Oxygen Furnace
Roughing Mill
Finishing Mills
Fabrication & Machining
Steel Corner
Other Modules
Barrel Factory
Duckunder Bridge
Brinker Valley East
Brinker Valley Bridge
Brinker Valley West
Coal Tipple
Crossover
"In Progress"
New Valley
Presentation Module
Produce Stand
Royersford Station
Tunnel Hill
World's Shortest Module

Module Owner:

CLUB
Primary Modeler:

Frederick Monsimer
Other Modelers:

N/A
Construction Date:

July, 2007
First Show:

August, 2007
Greenberg's Show
Timonium, MD
Module Dimensions:

12 inches X 75.4 inches
length along outside edge of module
Module Description:

This design for a corner module actually involved ideas from several modelers, including ideas from some people outside our club.

The main line tracks are located 5" and 7" from the front edge of the layout, which fits the standard for HO scale modules. But, by making the overall width of the module 12 inches, the module can be reversed and used as either an "inside" corner or an "outside" corner, because the tracks are also 5" and 7" from the back edge of the module.

This allows us to set up displays in "L" shapes or "U" shapes, rather than being limited to rectangular configurations. The reversible corners have an outside radius of 48 inches, which is the same as all our other corner modules, except the two oldest (and largest) ones. That discrepancy is not a problem. We just have to make sure that the two "matching" corners are at diagonally opposite corners of the display, or that we use our special World's Shortest Module to fill the gap created by having these two larger modules on the same side of the display.

Our reversible corners made their debut as part of a multi-club layout. The ability to join two or more clubs’ modules together is just one advantage of standardized modules.

While most of the modules in our display are owned by the club members, we always need to have at least four corners to make a complete loop, so most of the corners are club-owned.

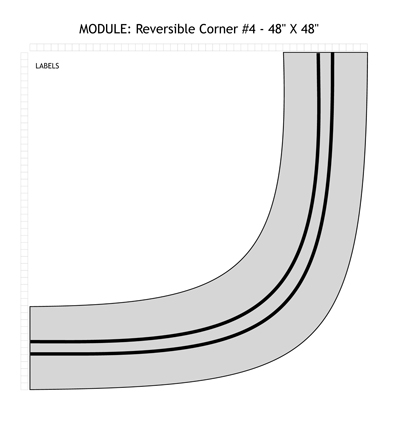

Diagram showing the general arrangement of this module.
Diagram showing the general arrangement of this module.

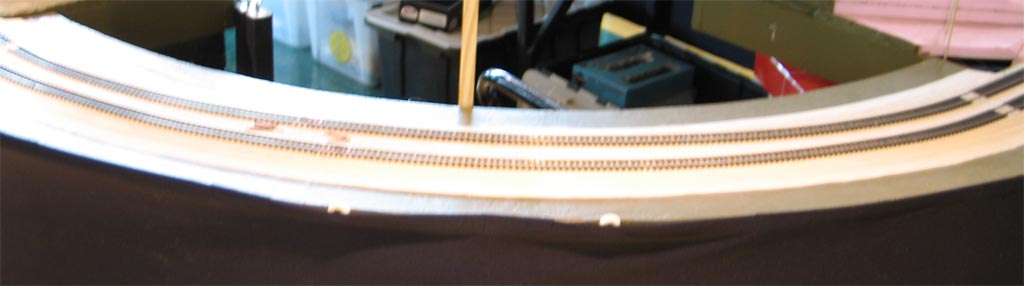

Reversible corner module.  These can be used as inside corners or outside corners, allowing greater flexibility in layout design.
Reversible corner module.
These can be used as inside corners or outside corners, allowing greater flexibility in layout design.
